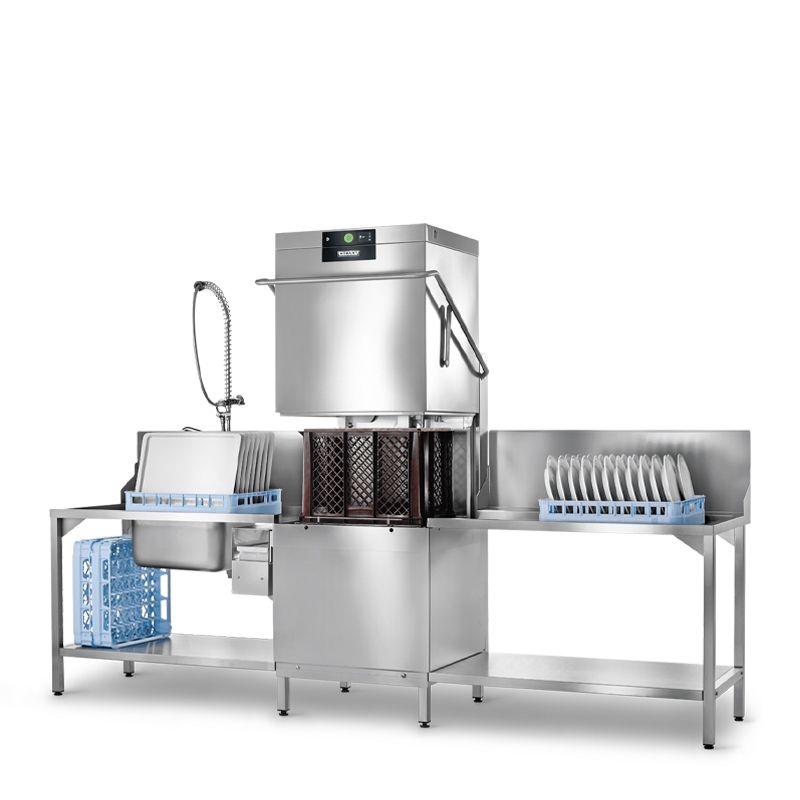

DISHWASHER PASSTHROUGH, HOBART

AUPL - PREMAX PASS THROUGH DISH AND UTENSIL WASHER, LARGE
Hood-type dishwasher with switchable high pressure wash for straight through or corner operation

PRODUCT ADVANTAGES
• PERMANENT-CLEAN automatic soil removal: innovative filter system eliminates manual pre-cleaning. Soil is immediately removed into an external strainer, which saves operating costs and protects the machine
• XL wash chamber: the large hood and chamber provide best wash results, e.g. for – up to 24 plates/rack – up to 8 sheets 600 x 400 mm
– up to 8 trays 660 x 500 mm – up to 2 1/1 GN-boxes
• VISIOTRONIC control: single button control with remaining time indicator together with text and graphic display
• SENSO-ACTIVE resource management: constantly measures the quality of the wash water and keeps the amount of rinsing needed in each rinse cycle to the minimum in order to guarantee a fully hygienic wash result
• Eco programme: switchable steam rinse cycle reduces fresh-water consumption to 1.4 l/cycle. Saving of up to 44 % water and chemicals
• VAPO-ACTIVE steam washing: significantly less manual pre-cleaning and second runs by intensive wash cycles with steam
• POWER-PLUS wash programme: selectable high-pressure programme to wash heavily soiled wash items
• Exhaust energy storage: the fully enclosed 4-sided hood keeps steam and energyinsidethesystem: energy saving up to 3 kW, less humidity in the kitchen area
and better hygienic conditions
• CLIP-IN wash and rinse arms: wash and rinse arms can be removed with one hand and without any tools
• ROTOR-X wash system: separate rotating upper& lower 4-spoke wash arms deliver dynamic wash power
• VAPOSTOP (optional): prevents vapour escaping from the machine when the hood is opened. Certified to remove the need for an exhaust canopy
• AUTO-HOOD LIFT (optional): press button to close. Opens automatically at end of cycle
• Intelligent energy management: the available energy is used continuously. Thus, at a low total loading value the heating time gets reduced
• Interlocked strainer: prevents operation without tank strainer
• EASY-CLEAN: items with blue markings identify components which require cleaning
• Nominal capacity up to 70 racks/h, 1,680 plates/h
• Large chamber with 660 x 500 mm usable space
• Extra large loading height of 540 mm
• 8 automatic cycles: short, standard, intensive, eco, cutlery, starch-removal, permanent, hygiene
• Multi-Setting: booster capacity may be reduced from 12.4 kW to 6.2 kW if connected with hot water
• Heat and noise insulated hood
• Strainer soil sensor
• Refill signal (detergent / rinse aid)
• Self-cleaning programme
• USB-interface for download of operational data
• Ready to install - completely equipped: fill / drain hose, electrical cable, detergent dispenser, rinse aid dispenser, rinse pump, drain pump, back-flow preventer
• Tank, frame, wash / rinse arms and panels are stainless steel 1,4301
• 1 plate rack P-18-12
• 1 tray rack T-06-09
• 1 cutlery rack C-01-07

735 X 742 X 1610 (2195 Open)MM

12 Month Warranty. Contact HOBART 1800 462 278
