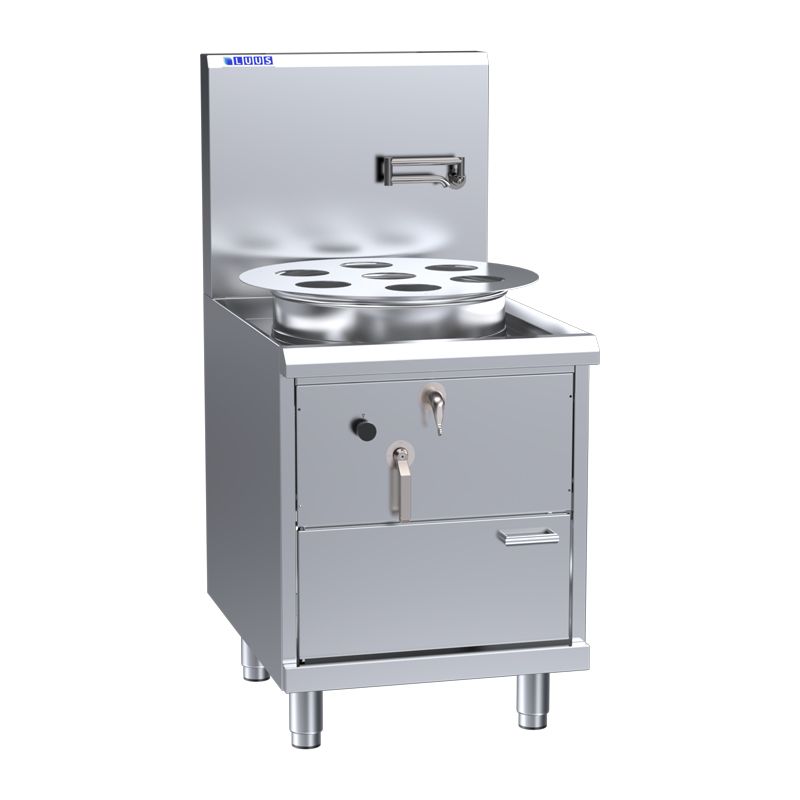

STEAMER HEAT EXCHANGE 7-HOLE GAS, LUUS

Code:
LU-YCA-1
Stock Level:
Our Price
$6,190.00
Add to Favourites

Add To Quote

Compare Product
View Compare List View Enquiry List Go to Checkout
Contact for Purchase Options
Specifications
Compact Auto-Refill Yum Cha Steamer
• 123 mj 32 jet mongolian burner with piezo, pilot & FFD
• In-built auto-refill mechanism with stainless steel float
• Four internal 304 stainless steel heat exchange tubes
• 1.5mm 304 stainless steel water tank
• 1.5mm 304 stainless 7 hole steamer plate
• Front gutter design for easier cleaning
• Zinc-aluminium Alloy burner handles

Overall Construction
• Heavy duty construction
• 1.5mm 304 stainless steel deck
• Splashback 1.2 mm 304 stainless steel
• Front cover, door and hob 1.2mm 304 stainless steel
• Side panels 0.9mm 304 stainless steel
• Stainless steel legs with 55mm height adjustment range

Dimensions
• 600mm x 800mm x 1300mm H
• Working height 845mm
• Weight 95kg
• Packed dimensions 650mm x 900mm x 1470mm H
• Packed weight 115kg

Connections
• Gas 3/4” BSP male
• Gas 65mm from left, 70mm from rear, 160mm to floor
• Supplied with gas regulator (specify Nat or LP on order)
• Water inlet 1/2” copper tube
• Water 35mm from right, 70mm from rear, 160mm to floor
• Drain 1 3/4” tube
• Drain 110mm from left, 70mm from rear, 305mm to floor

• 24 month ‘Platinum Warranty CALL LUUS ON 1800 993 168
